JZWP001C
当前位置:首页 > 产品中心 > LED Wall Pack Light > JZWP001C

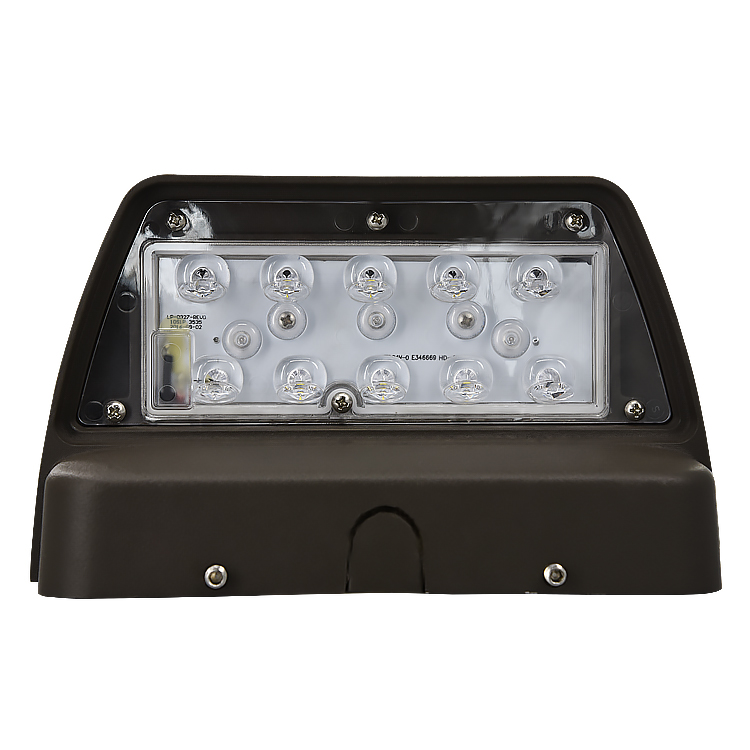

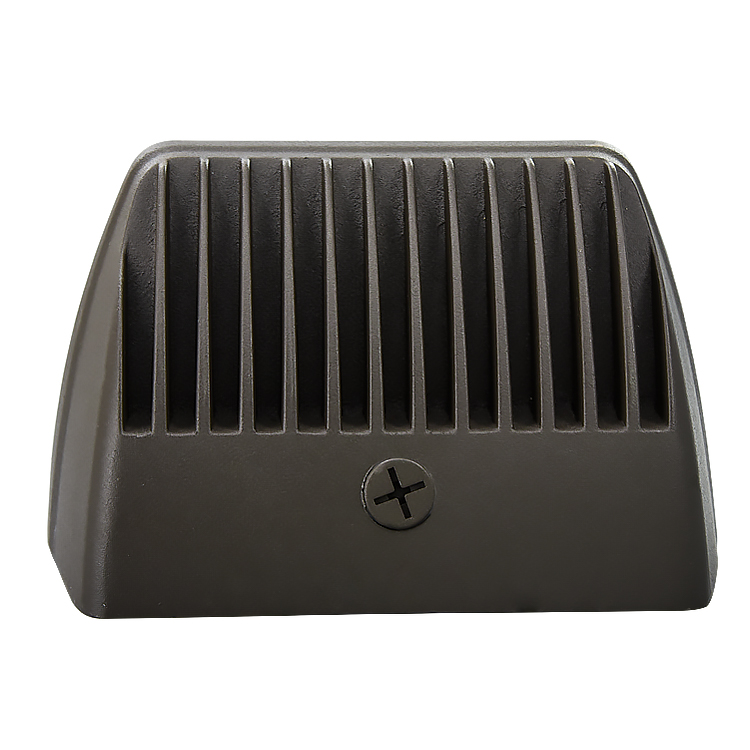

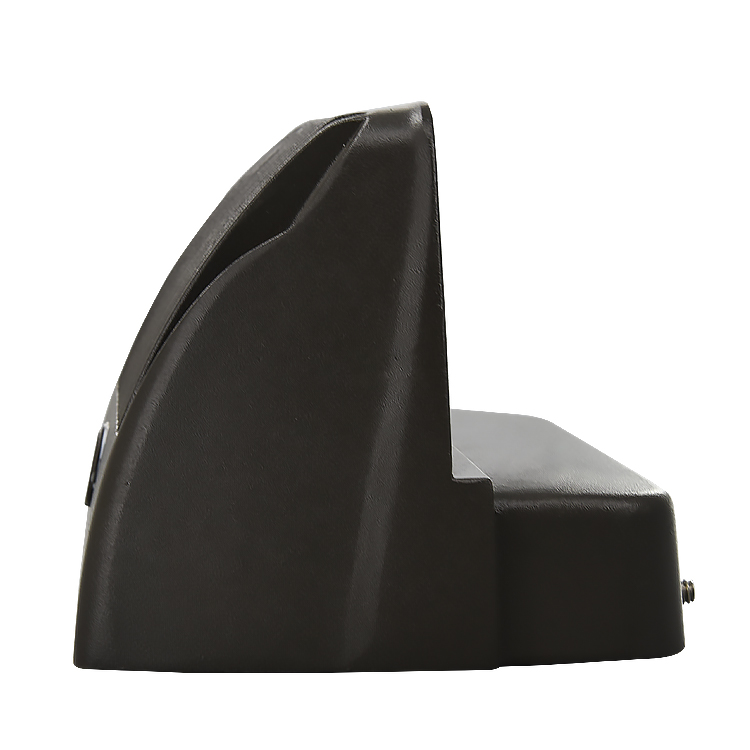

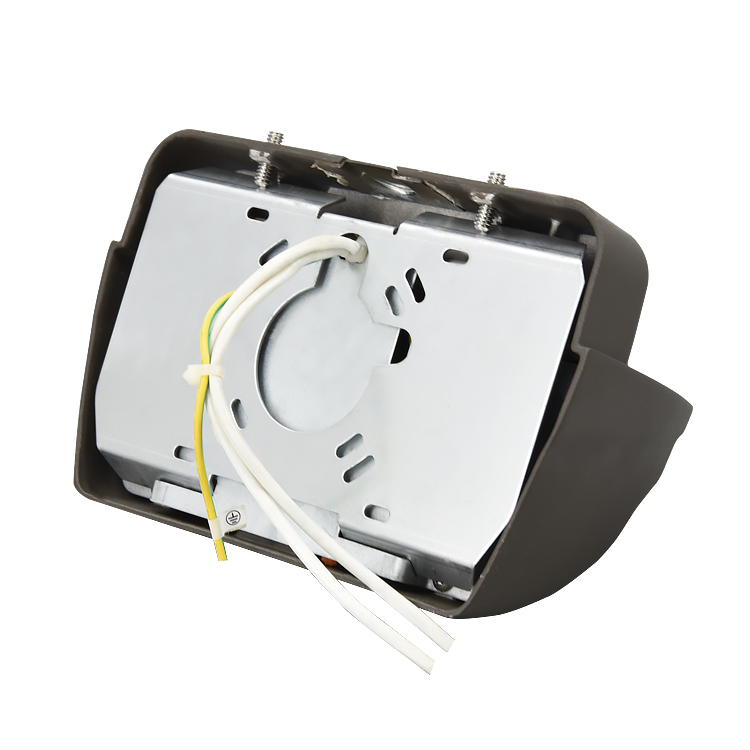

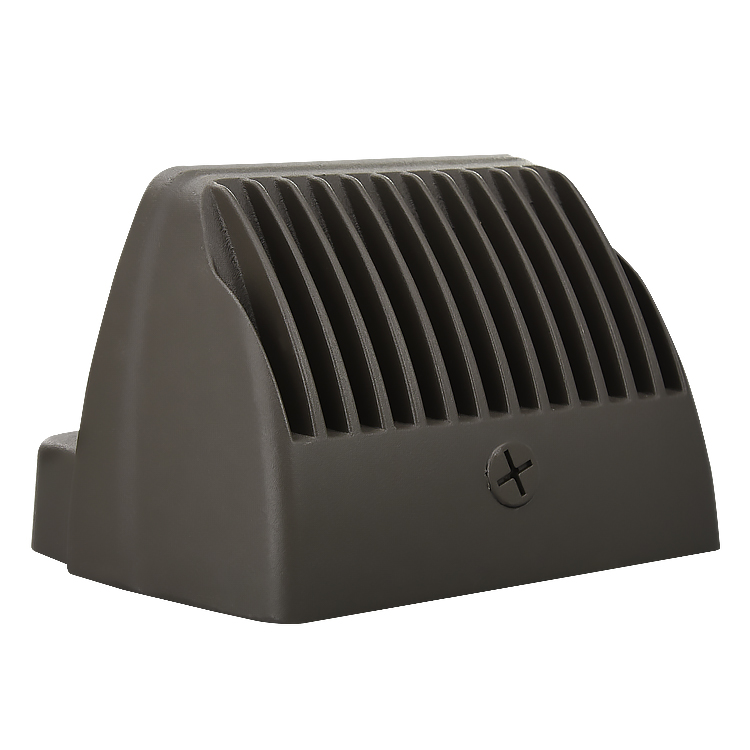

LED Wall Pack Light JZWP001C

1.Intergrated simple structure for IP65 and easy replacement.

2.Die-castin aluminous alloy with excelletn heat disspation to promise the longer lifetime.

3.Intergrated lens to offer good lighting distribution.

APPLICATION:

Family, factory, ware house, school,hotel, market and more.

Features:

• Modern, robust die-cast aluminum low glare wall pack suitable for commercial and industrial applications.

• CCT, power selectable. Multi(10) Wattage ranging from 20W to 120W.

• High efficiency @130 Lm/W as a minimum.

• Integrated lens offers good lighting distribution.

• Photocell(NEMA/12VDC) and motion sensor is optional.

   1-10V dimmable.

• Compatible with US universal junction box.

• UL, DLC listed, DLC premium certified.

获得免费优惠 浏览视频
Dimming Control
130Lm/W
ETL Certificate
Adjustable color temperature
产品规格
Part Number JZWP001
20W
JZWP001
24W
JZWP001
30W
JZWP001
42W
JZWP001
60W
JZWP001
80W
JZWP001
100W
JZWP001
120W
Input Wattage 20W  24W  30W
42W
60W
80W
100W
120W
Lumen @5000K 2600  3120  3900  5460  7800  10400  13000  15600
Input voltage AC100-277V 50/60Hz
Beam Angle TYPE Ⅲ-S
ColorTemperature 3000K/4000K/5000K
CRI ≥80
Average Life 50000H
LED Chip 2835
Driver Universelite
产品色温


产品配件
相关产品
JZWP001C
JZWP004
