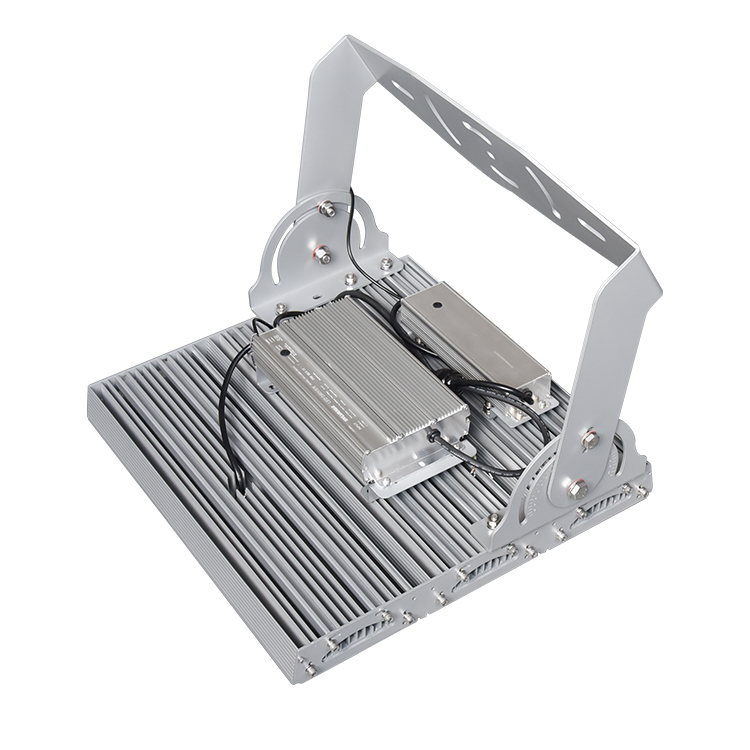

Stretching aluminium, light combination design. Simple and beautiful appearance, strong heat dissipation, convenient installation and design.
Application：
Gymnasium, golf course, Airportwarehouses, gymnasiums,wharfs, large building squares, stadiums.
Features：
• High powered flood light 1500W maximize.suitable for lighting large areas and sports facilities.
• Modular structure High efficiency up to 175lm/W.
• Unique mechanical design avoiding light pollution.
• Standard Dimming 0-10v, PWM, dimming customization available.
• Symmetrical,15°30°45°60°90°Assymmetrical 90°*135°
• Pre-installed breathable gland prevents internal moisture accumulation.
Dimming Control
DALI Control
SDCM<5
IP66
IK08
Up to 175 Lm/W
| Part Number | JZFLM007C 200W |
JZFLM007C 250W |
JZFLM007C 300W |
JZFLM007C 340W |
JZFLM007C 400W |
JZFLM007C 500W |
JZFLM007C 600W |
JZFLM007C 700W |
JZFLM007C 800W |
JZFLM007C 1000W |
JZFLM007C 1200W |
JZFLM007C 1500W |
| Input Wattage | 200W | 250W | 300W | 340W | 400W |
500W |
600W |
700W |
800W |
1000W |
1200W |
1500W |
| Lumen @5000K,15° | 30000 | 37500 | 45000 | 51000 | 60000 | 75000 | 90000 | 105000 | 120000 | 150000 | 180000 | 225000 |
| Lumen @5000K Input voltage |
35000 | 42500 | 48000 | 56100 | 70000 | 85000 | 96000 | 119000 | 132000 | 160000 | 192000 | 240000 |
| AC100-277V 50/60Hz | ||||||||||||
| Beam Angle | 15°,30°,45°,60°,90°,90*135° | |||||||||||
| Color Temperature | 2700-6500K | |||||||||||
| CRI | ≥70 | |||||||||||
| Average Life | 54000H | |||||||||||
| LED Chip | 35,355,050 | |||||||||||
| Driver | Inventronics,Universelite |
|||||||||||
